Flora-Flow LLC

Mainline Water Supply Kits for 1, 2, 4, 10 and 20 Drip Lines

$ 47.95
$ 47.95
Shipping to US addresses free for all mats (except AK/HI).
Number of Lines
With Repair Parts

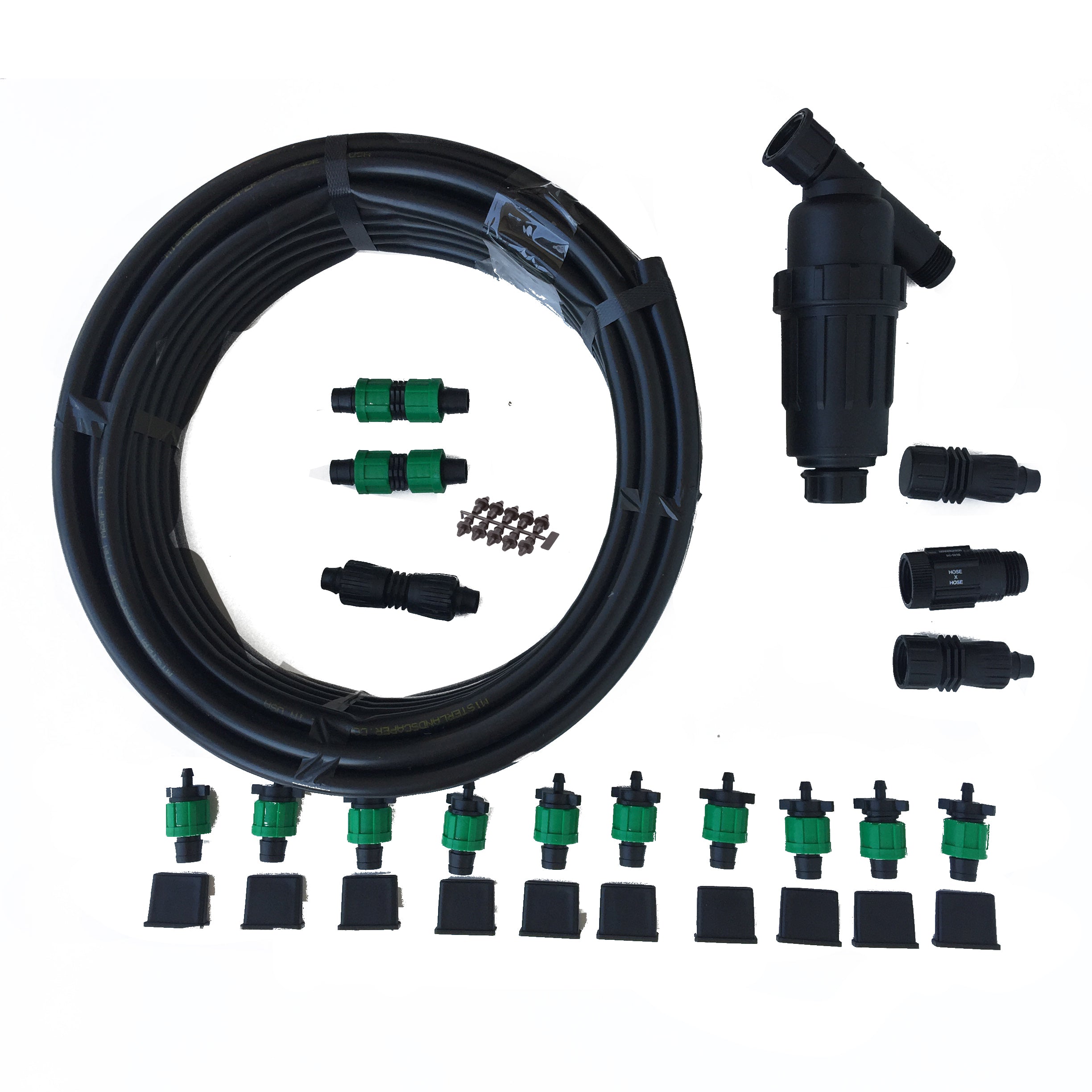

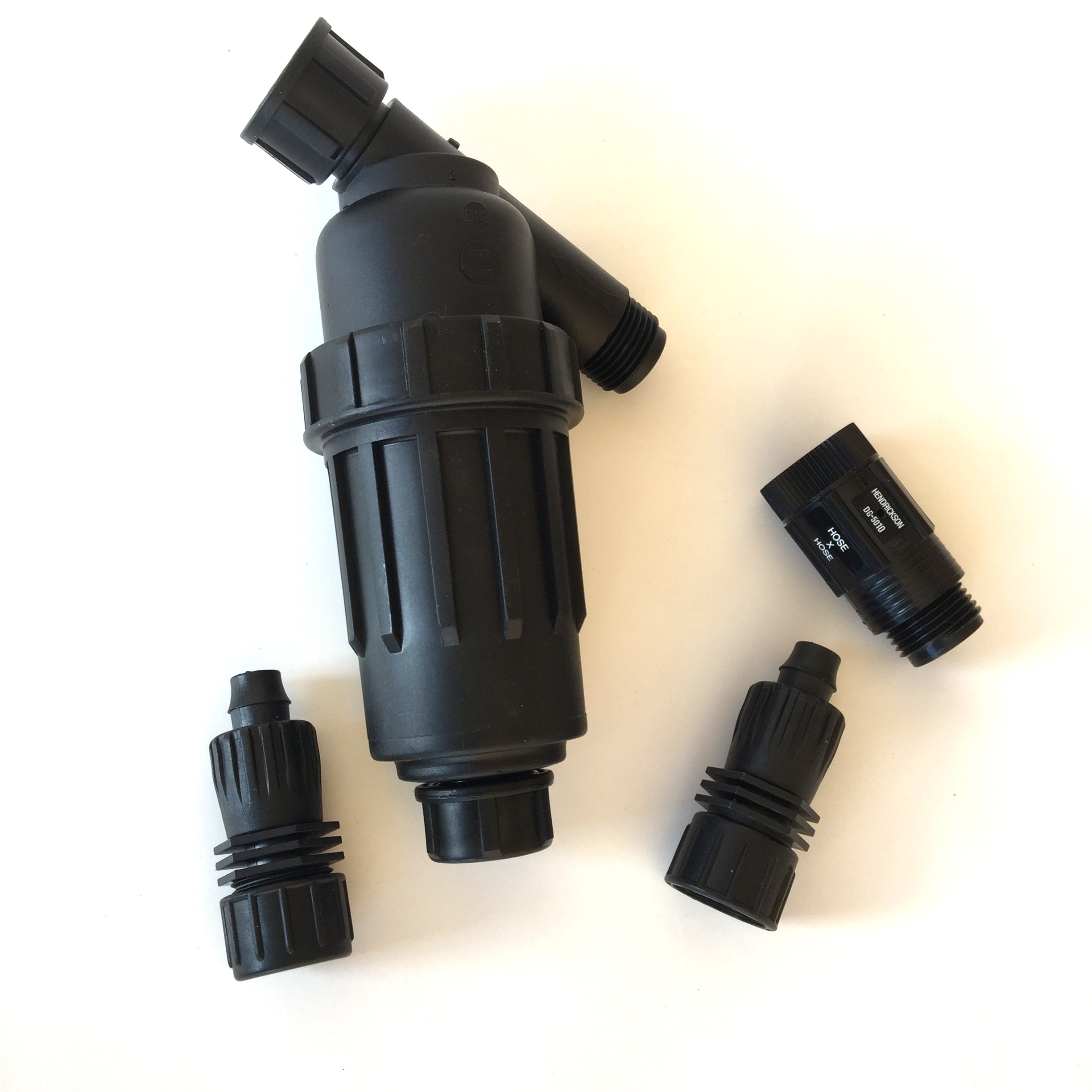

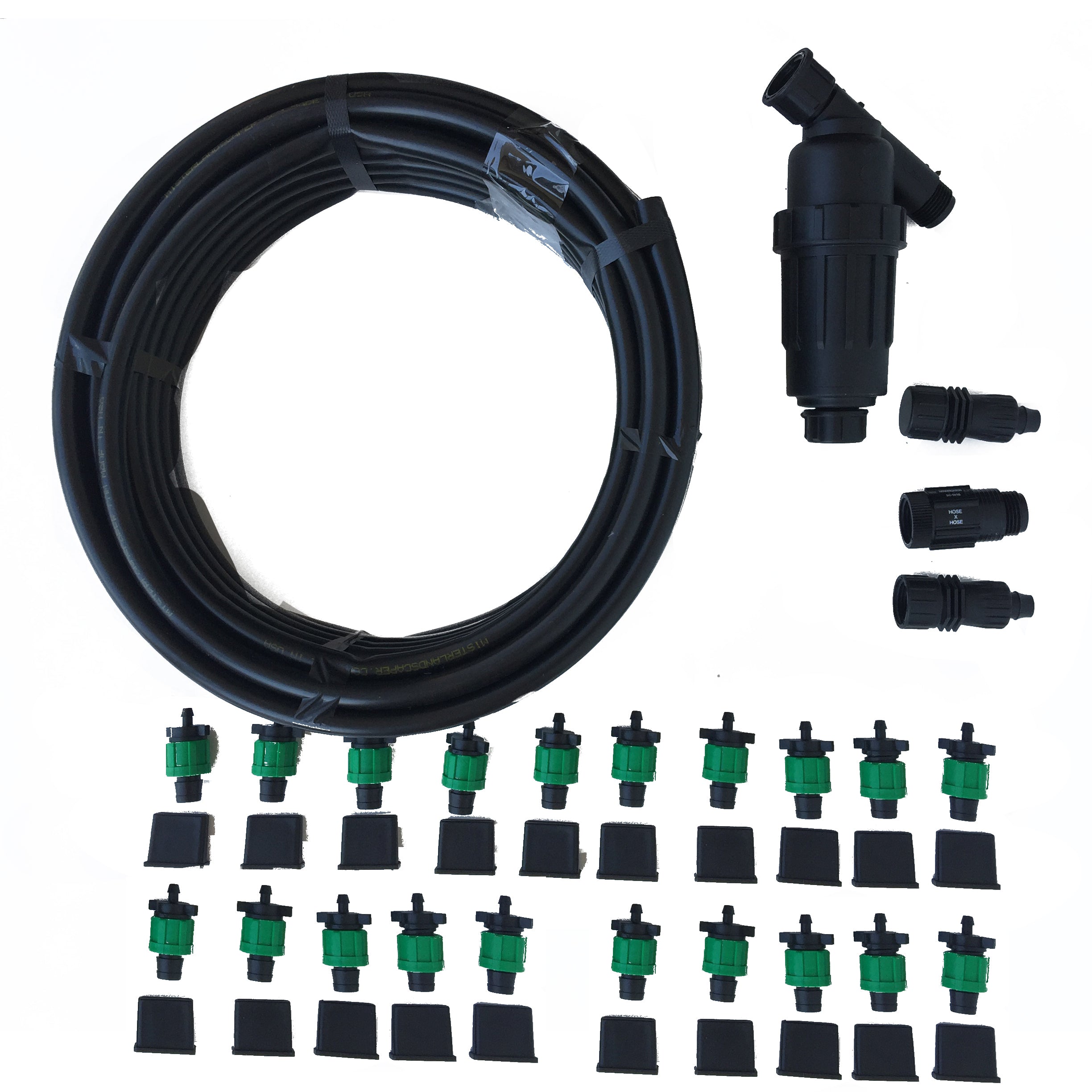

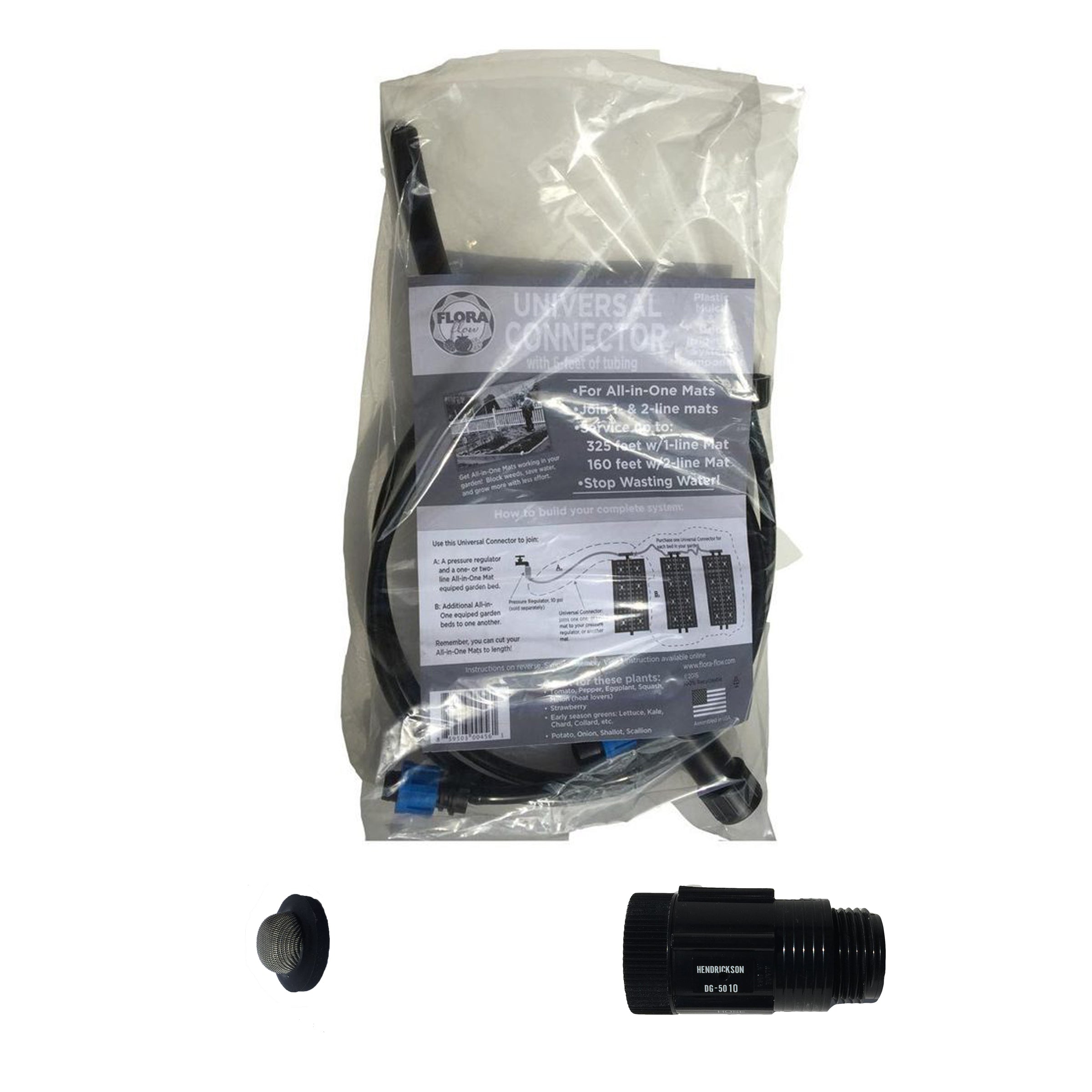

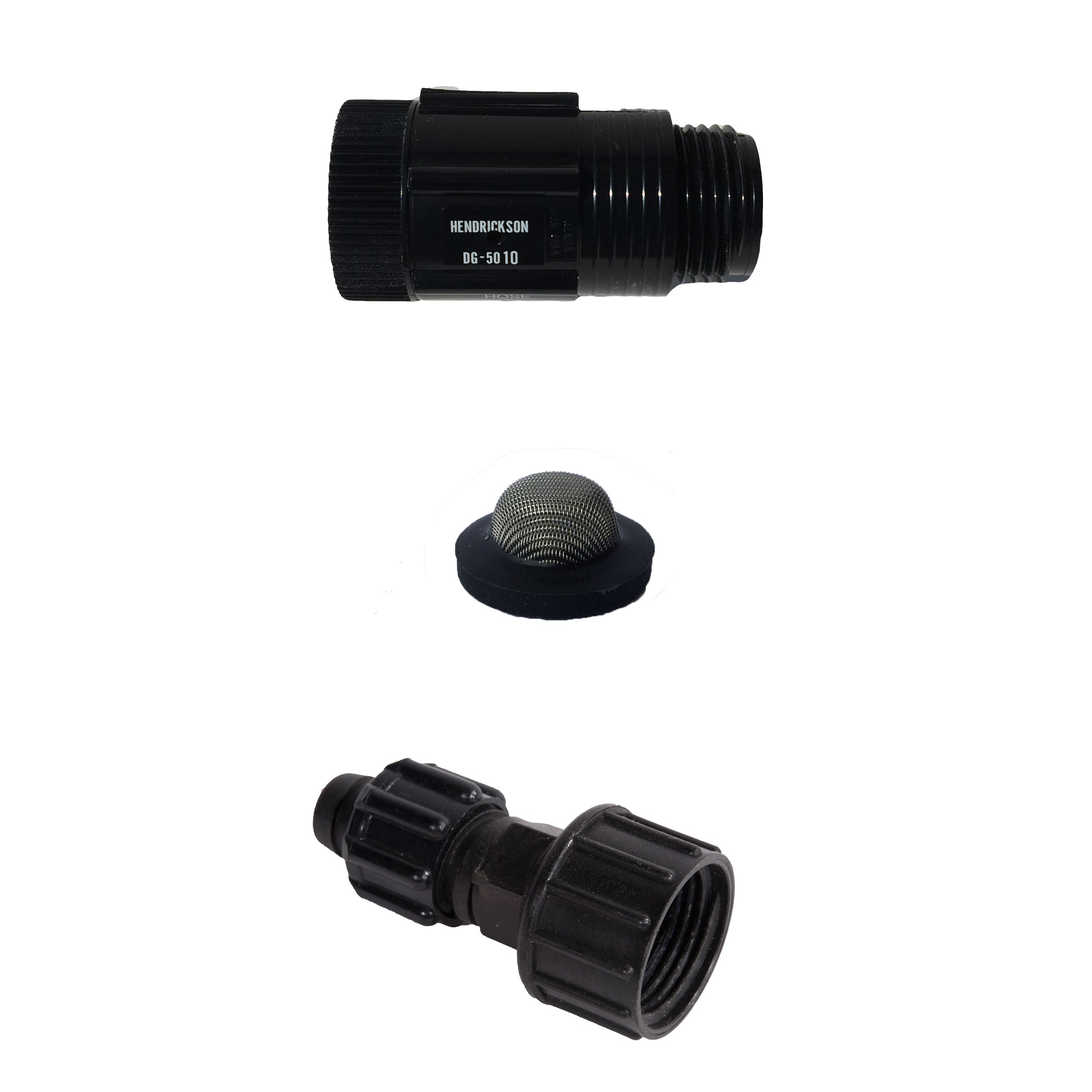

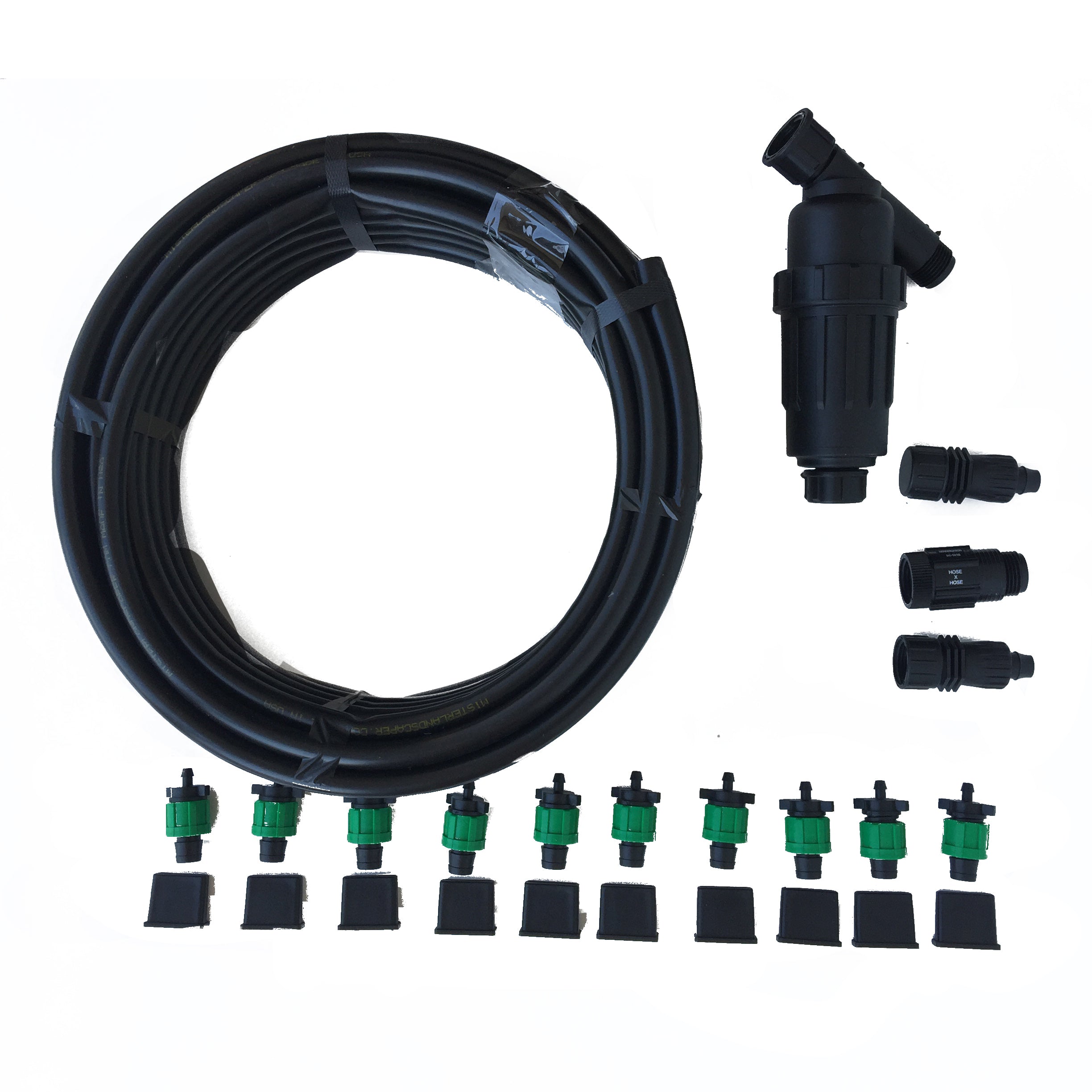

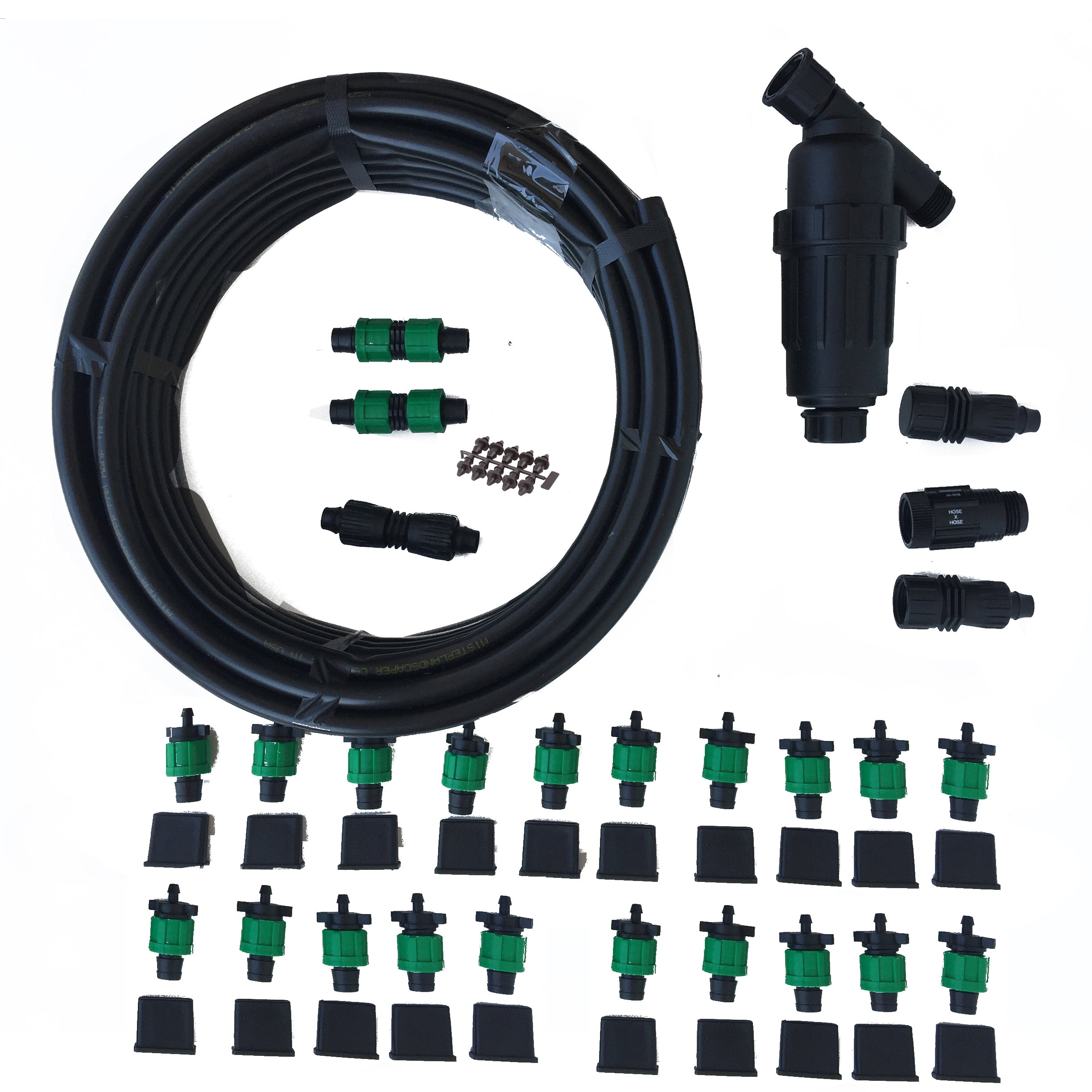

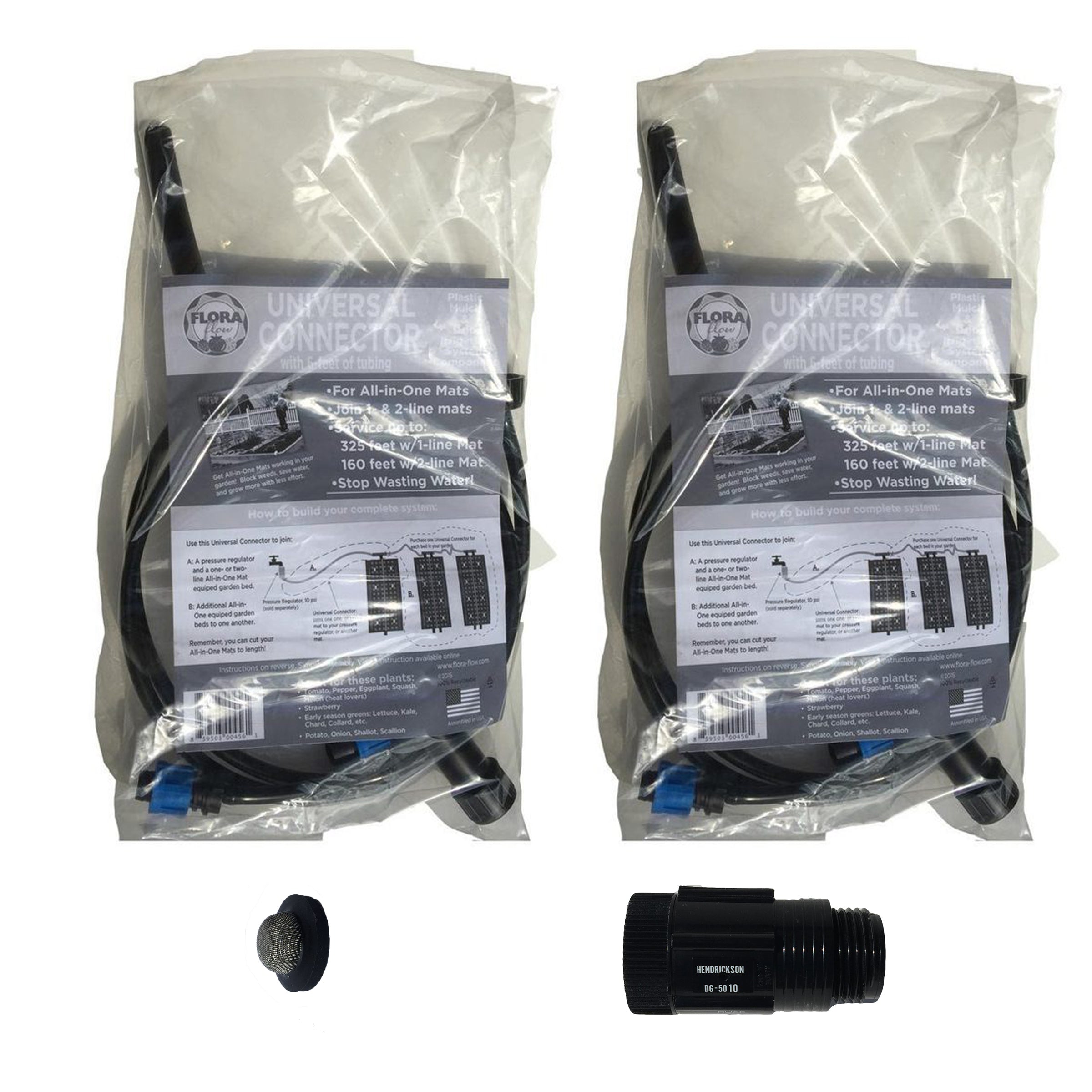

This kits simplify ordering watering components for your installation.  Select the number of drip lines you want to service, . Depending on the number of lines you select, it will be made up of these components:

●
Part Number of Lines
1 2 4 10 20
 Pressure regulator ● ● ● ● ●
150 or 200-mesh spin filter ● ●
Female hose adapter ● ●
Mainline tubing end cap ● ●
tape-loc barb fittings ● ●
Drip tape end sleeves ● ● ● ● ●
Mainline tubing (50-feet) ● ●
Filter Screen Washer ● ● ●
Universal Connector Kit  ● ●

    Lines vs Beds

    Dual line mats have  two lines per bed.  So the 10-line kit will service up to five beds.  If you mix single and dual mats you will need to count lines.  The single-line kit will service only a single line mat.

    Bed Spacing

    The 10 and 20 line kits include 50-feet of mainline tubing.  This is enough for up to 10 beds each 3-feet wide with a 2-foot pathway between.  You can purchase additional mainline tubing if you need more.

    Repair Components

    Kits with repair parts the listed items.  Goof plugs repair holes in mainline tubing.  Alternatively, a damaged section of mainline can be cut out and the coupler can join the good halfs.  Drip tape holes similarly can be cut out and joined with the tape-loc coupler:

    • 10-each Goof Plugs
    • 2-each tape-loc couplers
    • 1-each mainline tubing coupler

    Multi-Zone Systems

    Due to flow limitations the kits can only service about 1000 feet of drip tape.  Larger installations require multiple watering zones.  Also, standard water pressure and sources typically deliver about 5 gallons per minutes.

    You can create a multi-zone system via the addition of valves and tees. We are happy to help with calculations and planning.

    Mat Option Info--

    Color Info

    Pick color based on your crop requirements.

    • Black heats soil most quickly and can run hot for delicate young plants.
    • White/Black: An ultra reflective top white/grayish layer actually decreases the soil temperature to promote growth for heat
      sensitive crops or warm climates, and provides additional light reflection to the underside of foliage.The black
      (bottom) layer stops weed growth.
    • Silver: Reflective metalized color on top deters insects and decreases the soil temperature, more than
      white on black. The black (bottom) layer stops weed growth. The heat trap is an 8-inch wide black
      strip in the center of the plastic, which keeps heat reduction to a minimum.
    Size Info
    • Pick the longest length you can use to save money and packaging waste.
    • Mats can be cut to length with knife or scissors.
    style: Drip Tape Count
    • Choose No Drip Line products if you want to use your own watering system.
    • Single drip lines are good for larger fruiting crops that are planted near the center of the bed.
    • Dual Drip lines are most popular as they provide more even water distribution throughout the bed and can water smaller plants more easily.
    Water Supply Requirements
    • A water supply system is required to bring water to each drip line. View water supply kits here...
    Mat Specifications
    • Thickness: Black 1.5mil, White,Red,Silver 1.25mil.
    • Width: 4 feet
    • Hole Perforation Spacing: 6"-Six holes across.
    • Drip Tape(s): 8 mil, 0.24 GPH Emitters @ 12" spacing. Netafim brand.
    • Packaging: All lengths rolled on carboard core and packed in plastic bags.
    • Note: our current mats do not include printed markings.
    • Weight: ~4 pounds per 100 feet.
